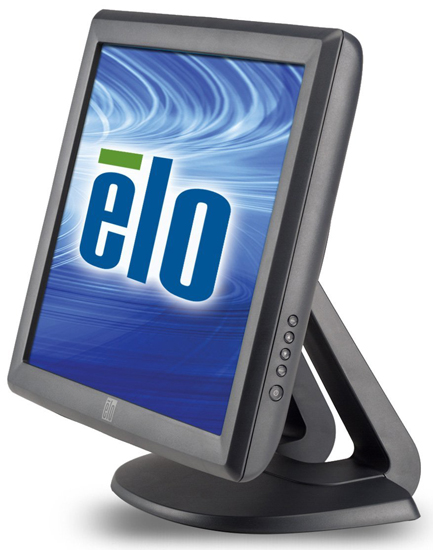

Elo Touch Monitor 17in 1715L,IT Serial/USB Antiglare
56.410 RSD
Nema na zalihama
The 1715L touchmonitor is designed, developed and built to provide the most cost-effective touch solutions for system integrators and VARs. It packs Elo quality and reliability into an integrated, affordable touchmonitor. The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
Model1715LDisplay17.0″ diagonalAspect Ratio5:4, Active Matrix TFT LCD with LED backlightingUseful Screen AreaHorizontal: 13.3″ (338 mm)
Vertical: 10.6″ (270 mm)Native (Optimal) Resolution1280 x 1024Other Supported Resolutions1280 x 1024 60, 75 Hz
1280 x 960 60 Hz
1152 x 864 75 Hz
1024 x 768 60, 70, 75 Hz
1024 x 768 65 Hz (Sun)
832 x 624 75 Hz (Mac)
800 x 600 56, 60, 72, 75 Hz
720 x 400 70 Hz
720 x 350 70 Hz
640 x 480 60, 72, 75 Hz
640 x 480 66 Hz (Mac)Colors16.7 millionBrightness
(Typical)LCD panel: 250 nits
AccuTouch: 200 nits
IntelliTouch: 225 nits
Projected Capacitive: 225 nitsResponse Time – Total (Typical)5 msecViewing Angle
(Typical)Horizontal: ±85° or 170° total
Vertical: ±80° or 160° totalContrast Ratio (Typical)1000:1On-Screen Display (OSD)Controls (side): menu, up, down, select, power
Settings: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall
Languages: English, German, Spanish, Japanese, French
Lockouts: power, user controls
| Input Video Format | Analog VGA |
|---|---|
| Input Video Signal Connector | Mini D-Sub 15-Pin VGA type |
| Input Frequency | Horizontal: 31.5-80 kHz Vertical: 56.3-75 Hz |
| Power Supply | Internal AC, Optional external DC (power brick) |
| Input Voltage | AC: 100-240 VAC, 50/60 Hz DC: +12 VDC ±5% |
| Input Connector | AC: IEC 60320 C6 DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length) |
| Power Consumption (Typical) | AC: 21W DC: Monitor only: 17W; Monitor + AC/DC Adapter: 21W |
| Monitor Dimensions (with Stand) (W x D x H) |
15.4″ (391 mm) x 8.0″ (203 mm) x 14.4″ (366 mm) | ||
|---|---|---|---|
| Shipping Box Dimensions (W x D x H) |
17.99″ (457 mm) x 11.42″ (290 mm) x 17.32″ (440 mm) | ||
| Weight | Actual: 15.2 lb (6.9 kg) Shipping: 21.2 lb (9.6 kg) |
|---|
| Temperature | Operating: 0°C to 40°C (32°F to 104°F) Storage: -20°C to 60°C (-4°F to 140°F) |
|---|---|
| Humidity (noncondensing) |
Operating: 20%-80% Storage: 10%-90% |
| Form Factor | Desktop | ||
|---|---|---|---|
| Enclosure Color | Dark gray | ||
| MTBF | 50,000 hours demonstrated | ||
| Stand Options | Tilt, remove | ||
| Mounting Options | 100 mm VESA mount Threaded-through mounting holes, under stand |
||
| Sealing | Touchscreen sealed to bezel Touchscreen sealed to LCD |
||
| Other Features | Security lock receptacle | ||
Windows is a trademark of the Microsoft Corporation.
MTBF (Mean Time Between Failures)
An MTBF measurement is based on a statistical sample and is not intended to predict any one specific unit’s reliability; thus MTBF is not, and should not be construed as, a warranty measurement.
