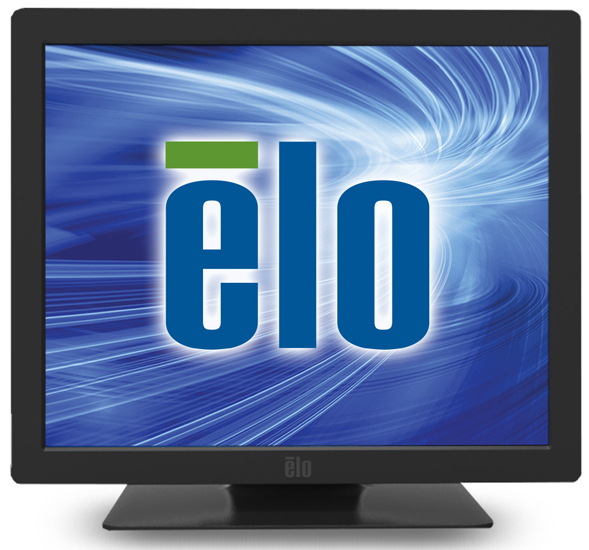

Elo Touch Monitor 15.6in 1509L IntelliTouch
48.120 RSD
Nema na zalihama
| Elo 1509L – LED monitor – 15.6″ | |
|---|---|
| Device Type | LED-backlit LCD monitor – 15.6″ – touchscreen |
| Built-in Devices | Touch-screen |
| Aspect Ratio | Widescreen – 16:9 |
| Native Resolution | 1366 x 768 at 60 Hz |
| Brightness | 220 cd/m2 |
| Contrast Ratio | 300:1 |
| Response Time | 16 ms |
| Colour Support | 16.7 million colours |
| Input Connectors | VGA |
| Colour | Black |
| Dimensions (WxDxH) | 39.2 cm x 22.8 cm x 28.5 cm – with stand |
| Weight | 2.4 kg |
| Localisation | Asia, Latin America, EMEA |
| Compliant Standards | UL, VCCI, C-Tick, BSMI, GOST, cUL, SABS, SASO, CB, CCC, IC, FCC, RoHS, KCC, WEEE, SONCAP, KEBS |
| Manufacturer Warranty | 2 years warranty |
Extended Specification
| General | |
|---|---|
| Aspect Ratio | Widescreen – 16:9 |
| Backlight Technology | LED backlight |
| Brightness | 220 cd/m2 |
| Brightness w/touchscreen | 198 cd/m2 |
| Colour | Black |
| Colour Support | 16.7 million colours |
| Contrast Ratio | 300:1 |
| Controls & Adjustments | Brightness, contrast, H/V position, sharpness, colour temperature, phase, clock |
| Diagonal Size | 15.6″ |
| Dimensions (WxDxH) | 39.2 cm x 22.8 cm x 28.5 cm – with stand |
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Features | IntelliTouch Surface Wave |
| Horizontal Refresh Rate | 30 – 80 kHz |
| Horizontal Viewing Angle | +40 / -40 |
| Native Resolution | 1366 x 768 at 60 Hz |
| OSD Languages | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Spanish, Japanese |
| Response Time | 16 ms |
| Vertical Refresh Rate | 60 Hz |
| Vertical Viewing Angle | +10 / -30 |
| Weight | 2.4 kg |
| Connectivity | |
|---|---|
| Interfaces | VGA |
| Environmental Parameters | |
|---|---|
| Humidity Range Operating | 20 – 80% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Input | |
|---|---|
| Movement Detection Technology | Surface acoustic wave |
| Type | Touch-screen – touchscreen |
| Manufacturer Warranty | |
|---|---|
| Service & Support | 2 years warranty |
| Service & Support Details | Limited warranty – 2 years |
| Mechanical | |
|---|---|
| Flat Panel Mount Interface | 75 x 75 mm |
| Miscellaneous | |
|---|---|
| Compliant Standards | UL, VCCI, C-Tick, BSMI, GOST, cUL, SABS, SASO, CB, CCC, IC, FCC, RoHS, KCC, WEEE, SONCAP, KEBS |
| Features | IntelliTouch Surface Wave |
| Included Accessories | Stand |
| Localisation | Asia, Latin America, EMEA |
| MTBF | 50,000 hour(s) |
| Power | |
|---|---|
| Power Consumption Operational | 8 Watt |
| Power Consumption Sleep | 1.8 Watt |
| Power Supply | External |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
