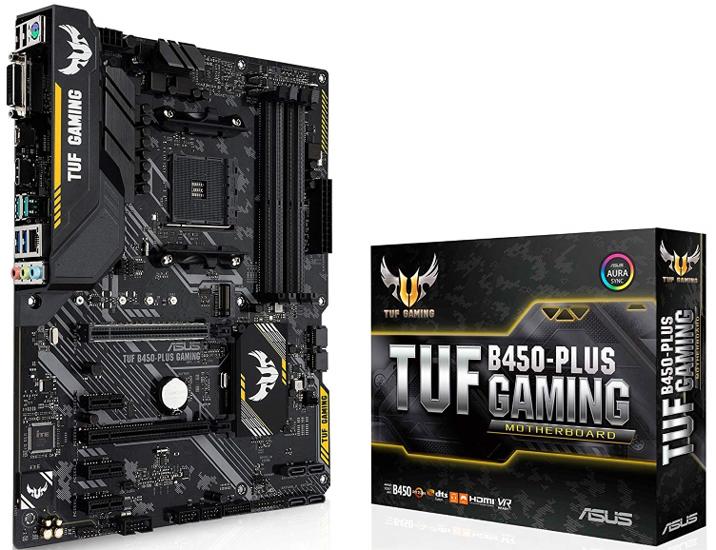

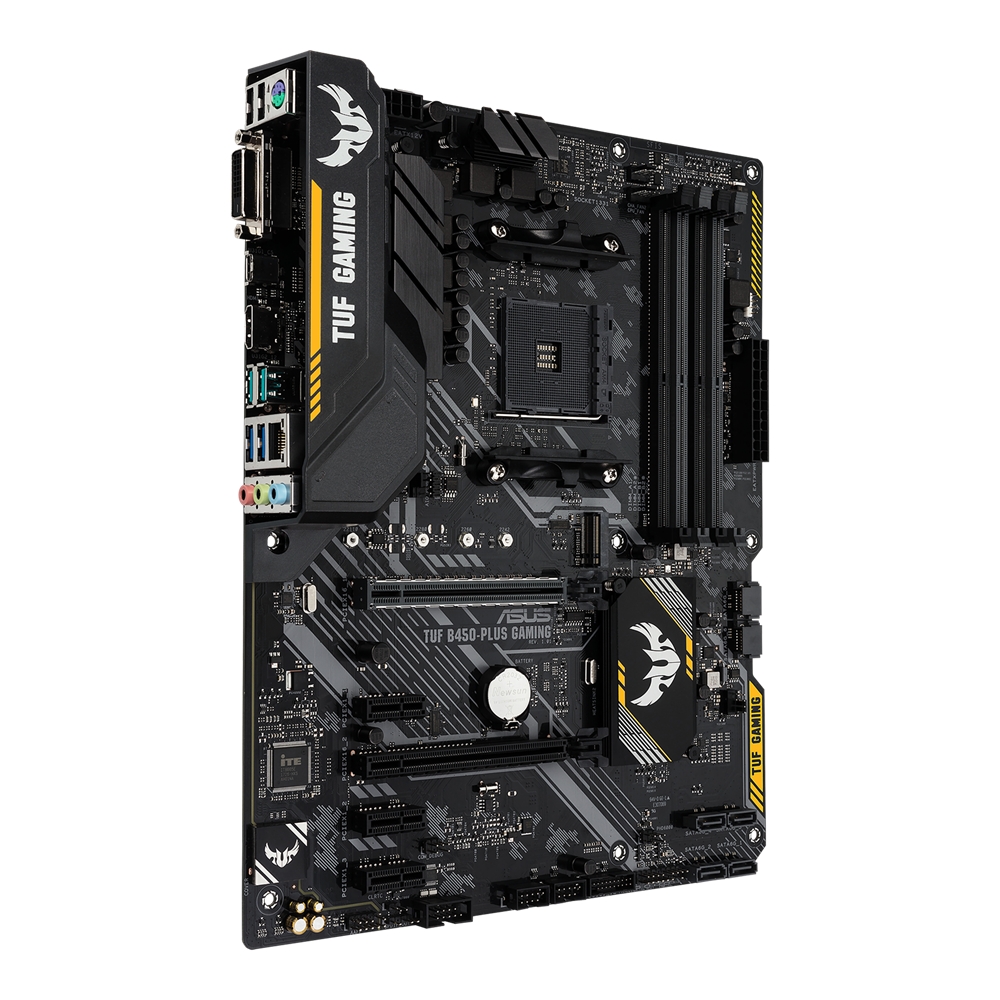

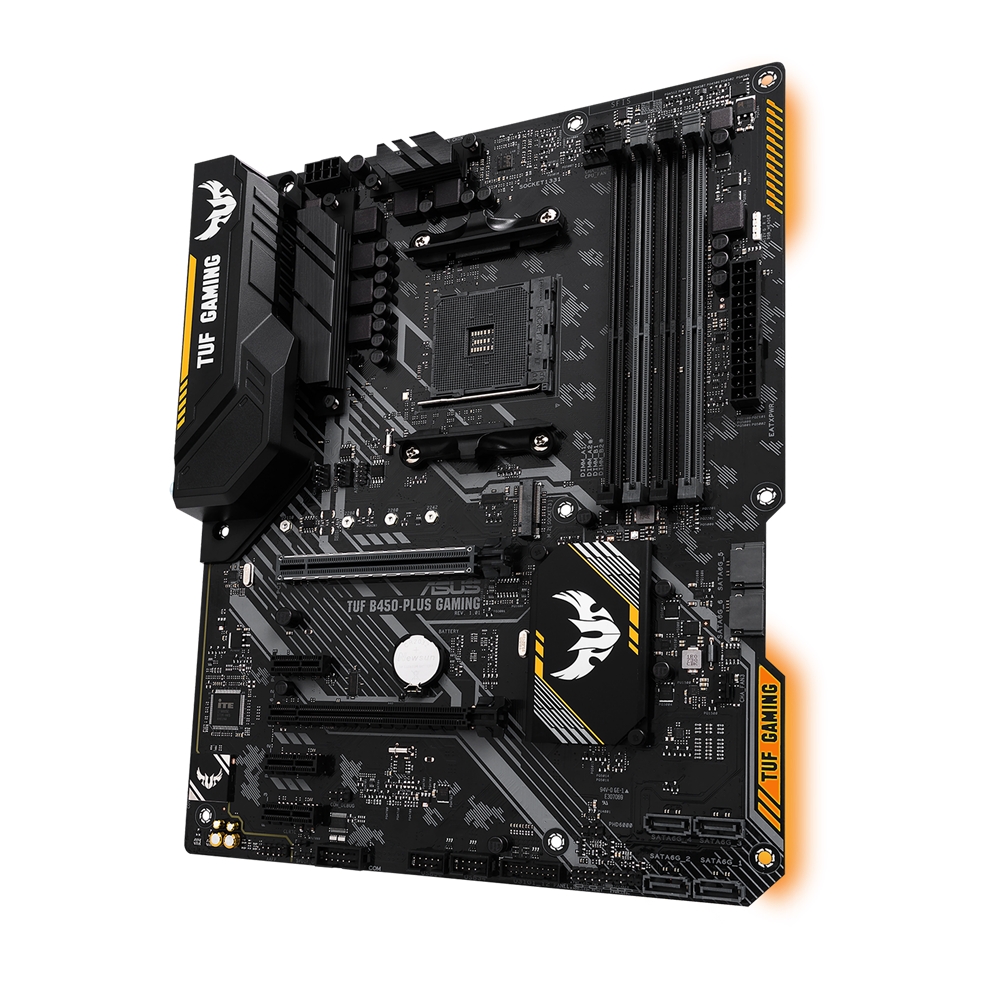

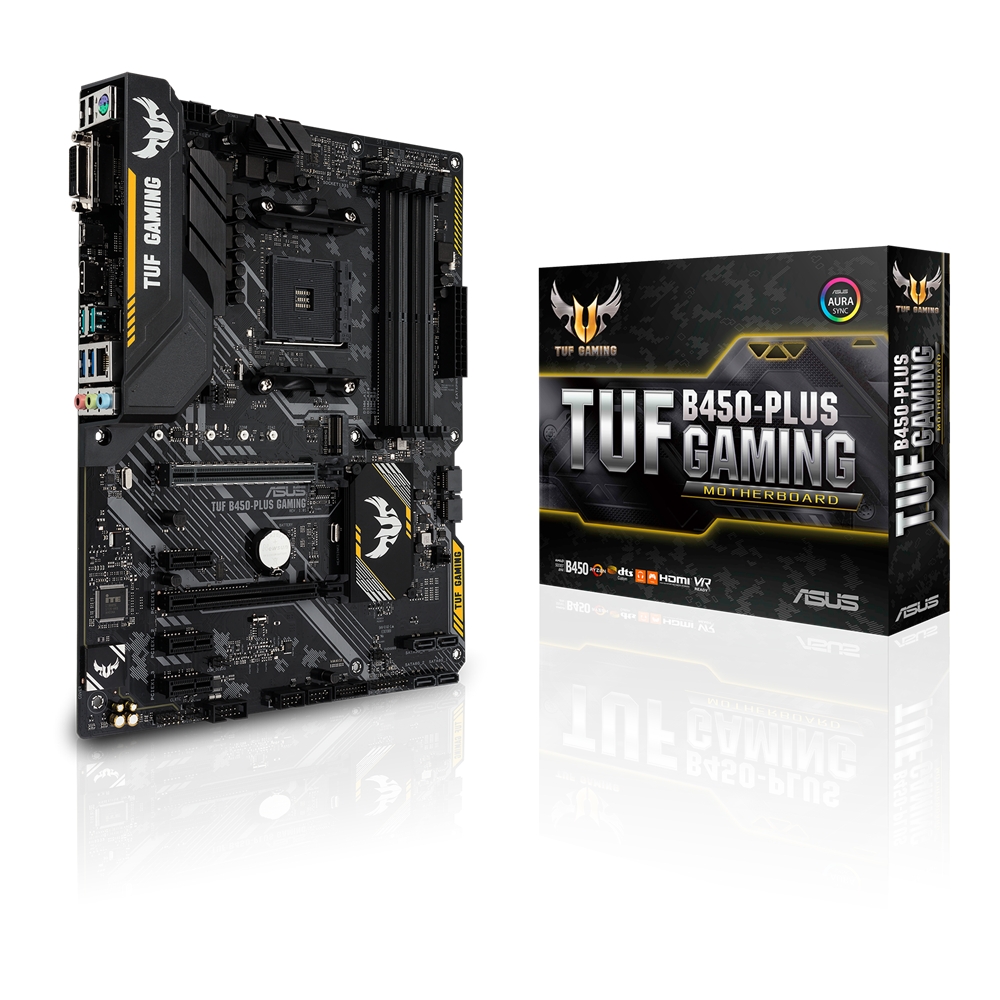

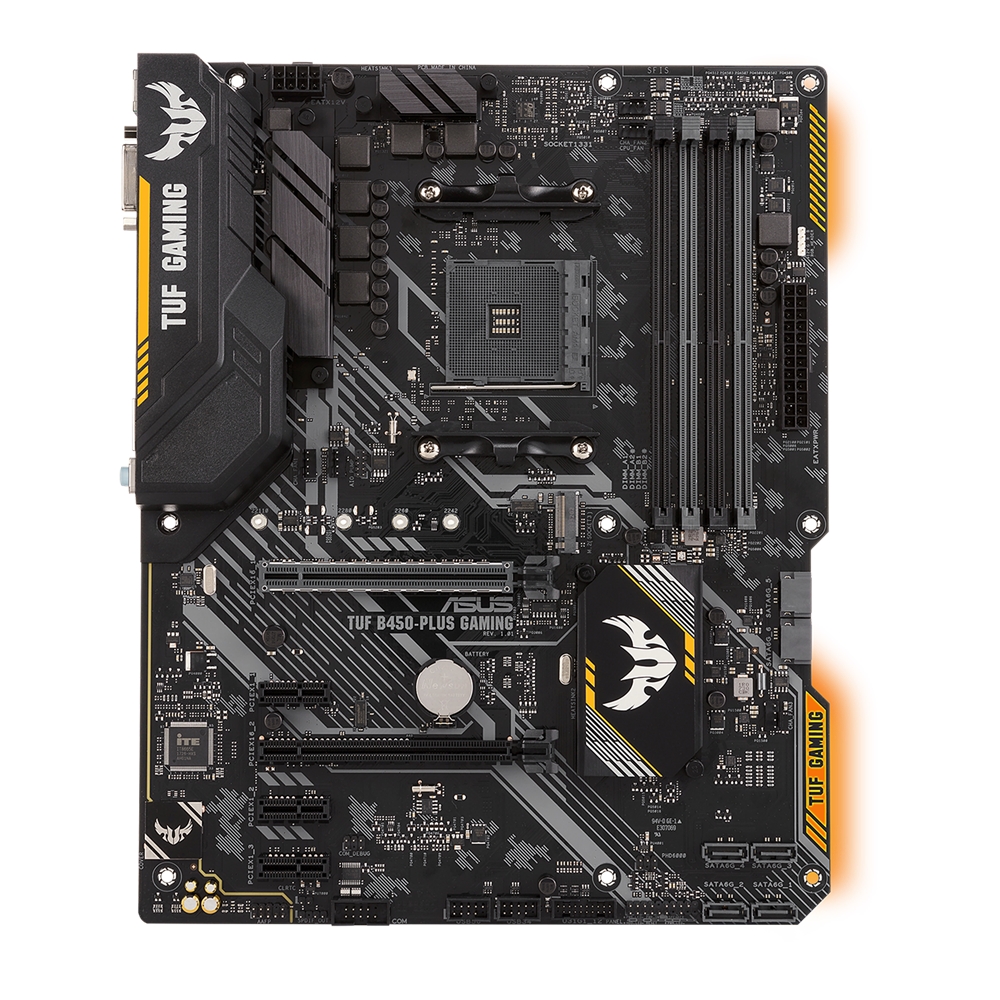

Amd-AM4 Asus TUF B450-PLUS Gaming
31.500 RSD
| Procesor | AMD AM4 za Ryzen 3rd/2nd/1st Gen |
| Čipset | AMD B450 |
| Memorija | 4x DDR4 DIMM, do 128GB, 4400MHz |
| Grafika | HDMI 2.0b, DVI-D, Integrisana Vega |
| M.2 Slot | 1x M.2 (SATA & PCIE 3.0) |
| SATA | 6x SATA 6Gb/s |
| Mreža | Realtek Gigabit + TUF LANGuard |
| USB | USB 3.1 Gen 2 Type-C i Type-A |
| Audio | Realtek ALC887-VD2 8-Kanal |
| Format | ATX (30.5cm x 24.4cm) |
| Specifikacije | |
|---|---|
| Model | TUF B450-PLUS GAMING |
| Procesor | AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors,* Refer to www.asus.com for CPU support list |
| Skup čipova | AMD B450 |
| Memorija | 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory,3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors,ECC Memory (ECC mode) support varies by CPU.,* The maximum memory frequency supported varies by processor.,Dual Channel Memory Architecture,* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Grafika | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors,Multi-VGA output support : HDMI/DVI-D ports,- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz,- Supports DVI-D with max. resolution 1920 x 1200 @ 60Hz |
| Multi-GPU podrška | Supports AMD CrossFireX™ Technology |
| Slotovi za proširenja | 1 x PCIe 2.0 x16 (max at x4 mode, ) *1,2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors,3rd/2nd/1st Gen AMD Ryzen™ Processors,1 x PCIe 3.0/2.0 x16 (x4 mode),1 x PCIe 3.0/2.0 x16 (x8 mode),AMD B450 chipset,3 x PCIe 2.0 x1,AMD Athlon™ with Radeon™ Vega Graphics Processors,1 x PCIe 3.0/2.0 x16 (x16 mode) |
| Skladištenje podataka | 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors: 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics: 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 4 x SATA 6Gb/s port(s)AMD Athlon™ with Radeon™ Vega Graphics Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*2AMD B450 chipset: Support Raid 0, 1, 10 2 x SATA 6Gb/s port(s) |
| LAN | Realtek® RTL8111H, TUF LANGuard |
| Zvuk | Realtek ALC887-VD2 8-Channel High Definition Audio CODEC *,- Premium Japanese-made audio capacitors,- Audio Shielding,- Dedicated audio PCB layers,- Audio Cover,- Exclusive DTS Custom for GAMING Headsets.,Audio Feature :,* Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
| USB portovi | 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors: 2 x USB 3.1 Gen 1 port(s) (2 at back panel, Type-A) 1 x USB 3.1 Gen 1 port(s) (1 at back panel, USB Type-CTM) 2 x USB 3.1 Gen 2 port(s) (2 at back panel, Type-A) 2 x USB 3.1 Gen 1 port(s) (2 at mid-board) 6 x USB 2.0 port(s) (2 at back panel, 4 at mid-board)AMD B450 chipset: |
| Posebne karakteristike | Overclocking Protection: – ASUS C.P.R.(CPU Parameter Recall) – ASUS ESD Guard: Enhanced ESD protectionASUS TUF PROTECTION: – ASUS SafeSlot: Protect your graphics card Investment – PC Cleaner – Stylish Fanless Design Heat-sink solution & MOS Heatsink – ASUS Fan Xpert 4 Core – ASUS DIGI+ VRM: Precision control for stable power – ASUS Overvoltage Protection: World-class circuit-protecting power design – ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!AURA: – Aura Lighting Control – Aura RGB Strip HeadersASUS Exclusive Features: – AI Suite 3 – Ai Charger ASUS Quiet Thermal Solution: ASUS EZ DIY: ASUS Q-Design: |

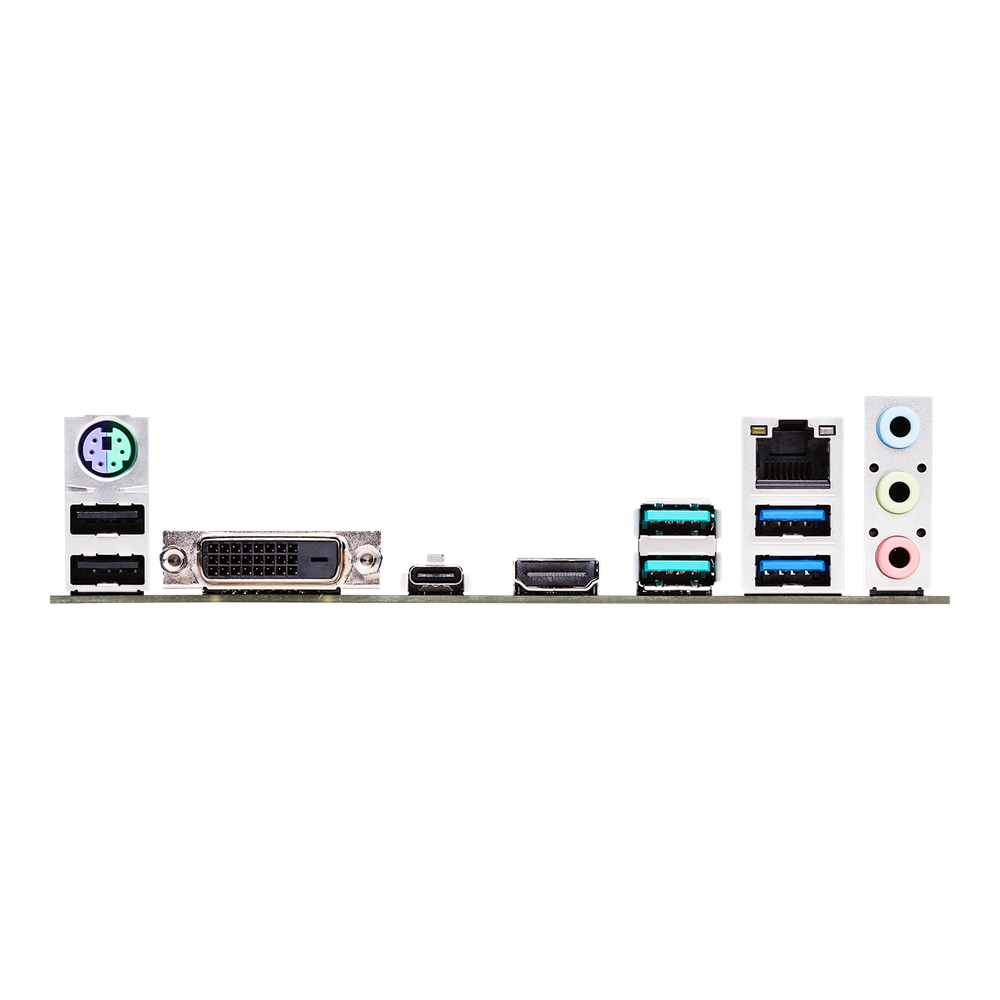

| I/O konektori na zadnjoj strani | 1 x 5Gb/s port(s) USB Type-CTM, 2 x USB 3.1 Gen 2 (teal blue)Type-A, 2 x USB 3.1 Gen 1 (blue) Type-A, 1 x PS/2 keyboard/mouse combo port(s), 1 x DVI-D, 3 x Audio jack(s), 1 x HDMI, 1 x LAN (RJ45) port(s), 2 x USB 2.0 |
| Unutrašnji I/O konektori | 1 x Aura RGB Strip Header, 3 x Chassis Fan connector(s) (3 x 4-pin), 1 x AIO_PUMP connector (1 x 4-pin), 1 x 8-pin ATX 12V Power connector(s), 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode), 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin), 6 x SATA 6Gb/s connector(s), 1 x CPU Fan connector(s) (1 x 4-pin), 1 x 24-pin EATX Power connector(s), 1 x System panel(s), 1 x S/PDIF out header(s), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1 x Front panel audio connector(s) (AAFP), 1 x Clear CMOS jumper(s), 1 x COM port header |

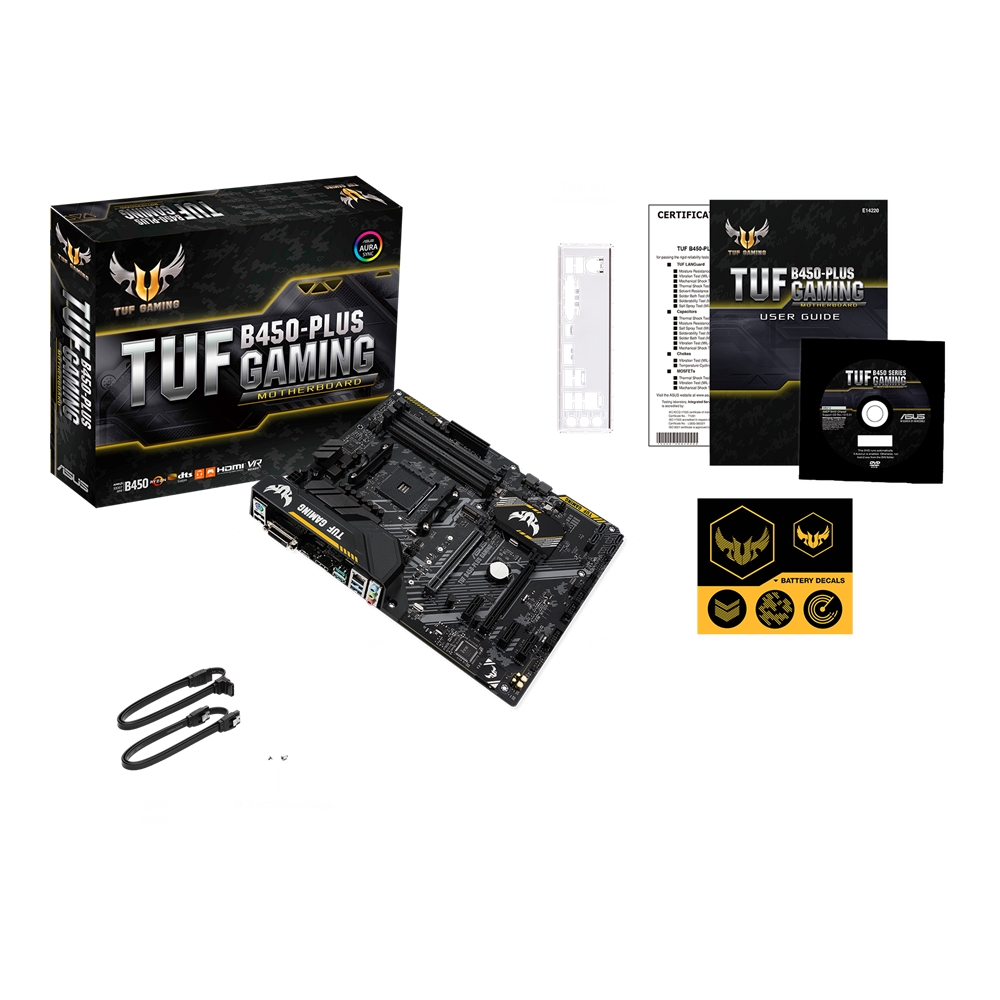

| Dodatna oprema | ASUS Q-Shield, 1 x TUF GAMING Sticker, 1 x TUF Certification card(s), User´s manual, 2 x SATA 6Gb/s cable(s), 1 x M.2 Screw Package, 1 x Supporting DVD |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen, F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Upravljivost | WOL by PME, PXE |
| Operativni sistem | Windows® 7 64-bit *3, Windows® 10 64-bit |
| Format | 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm ), ATX Form Factor |
| Napomena | *1 PCIe x16_2 will run x2 when installing devices in PCIe x1_1 or PCIe x1_2 slots. PCIE x16_2 will run x4 when no devices installing in PCIE x1_1 and PCIE x1_2 slots.*2 The M.2 Socket shares bandwidth with the SATA_5/6 ports, and therefore the SATA_5/6 ports cannot be used when an M.2 device is installed.*3 Windows 7 64-bit is only supported when using AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors. |
| Proizvodjac | |
|---|---|
| Format ploce | |
| Procesorsko leziste | |
| Cipset | |
| Tip memorije | |
| Broj RAM slotova | |
| Maksimalna ukupna memorija | |
| Broj M.2 slotova | |
| Broj SATA priključaka |
