Amd-Am4 Asus PRIME B450M-K II PLO03099
8.000 RSD
| Model: | PRIME B450M-K II |
| Socket: | AMD AM4 |
| Čipset: | AMD B450 |
| Memorija: | 2x DDR4 DIMM, do 64GB |
| M.2 Slot: | 1x M.2 (SATA & PCIE 3.0) |
| SATA: | 4x SATA 6Gb/s |
| PCIe: | 1x PCIe 3.0 x16, 2x PCIe 2.0 x1 |
| USB: | 6x USB 3.2 Gen1, 6x USB 2.0 |
| Audio: | Realtek 7.1 HD Audio |
| LAN: | Gigabit LAN |
| Format: | microATX (22.6cm x 22.1cm) |
| Garancija: | 36 meseci |
| Model | |
| Model | PRIME B450M-K II |
| Procesor | |
| Procesor | AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors *,* Refer to www.asus.com for CPU support list |
| Skup čipova | |
| Skup čipova | AMD B450 |
| Memorija | |
| Memorija | 2 x DIMM, Max. 64GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *,3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors,ECC Memory (ECC mode) support varies by CPU.,* The maximum memory frequency supported varies by processor.,Dual Channel Memory Architecture,* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Grafika | |
| Grafika | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors *,1 x HDMI 2.0b,*Graphics specifications may vary between CPU types. |
| Slotovi za proširenja | |
| Slotovi za proširenja | 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors,3rd/2nd/1st Gen AMD Ryzen™ Processors,1 x PCIe 3.0 x16 (x8 mode),1 x PCIe 3.0 x16 (x4 mode),1 x PCIe 3.0 x16 (x16 mode),2 x PCIe 2.0 x1,AMD Athlon™ with Radeon™ Vega Graphics Processors,AMD B450 chipset |
| Skladištenje podataka | |
| Skladištenje podataka | Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports,Athlon™ with Radeon™ Vega Graphics Processors : ,3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics : ,1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode),1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode),AMD B450 chipset : ,4 x SATA 6Gb/s port(s),,Support Raid 0, 1, 10 |
| LAN | |
| LAN | ASUS LANGuard,Realtek® RTL8111H |
| Zvuk | |
| Zvuk | Realtek ALC887/8977.1-Channel High Definition Audio CODEC *,- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback,- LED-illuminated design,- Audio Shielding,- Dedicated audio PCB layers,- Premium Japanese audio capacitors,Audio Feature :,* Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
| USB portovi | |
| USB portovi | Front USB Port ( Total 6 ),4 x USB 3.2 Gen 1 port(s)(4 x Type-A),Rear USB Port ( Total 6 ),2 x USB 2.0 port(s)(2 x Type-A),2 x USB 3.2 Gen 1 port(s),4 x USB 2.0 port(s) |
| I/O konektori na zadnjoj strani | |

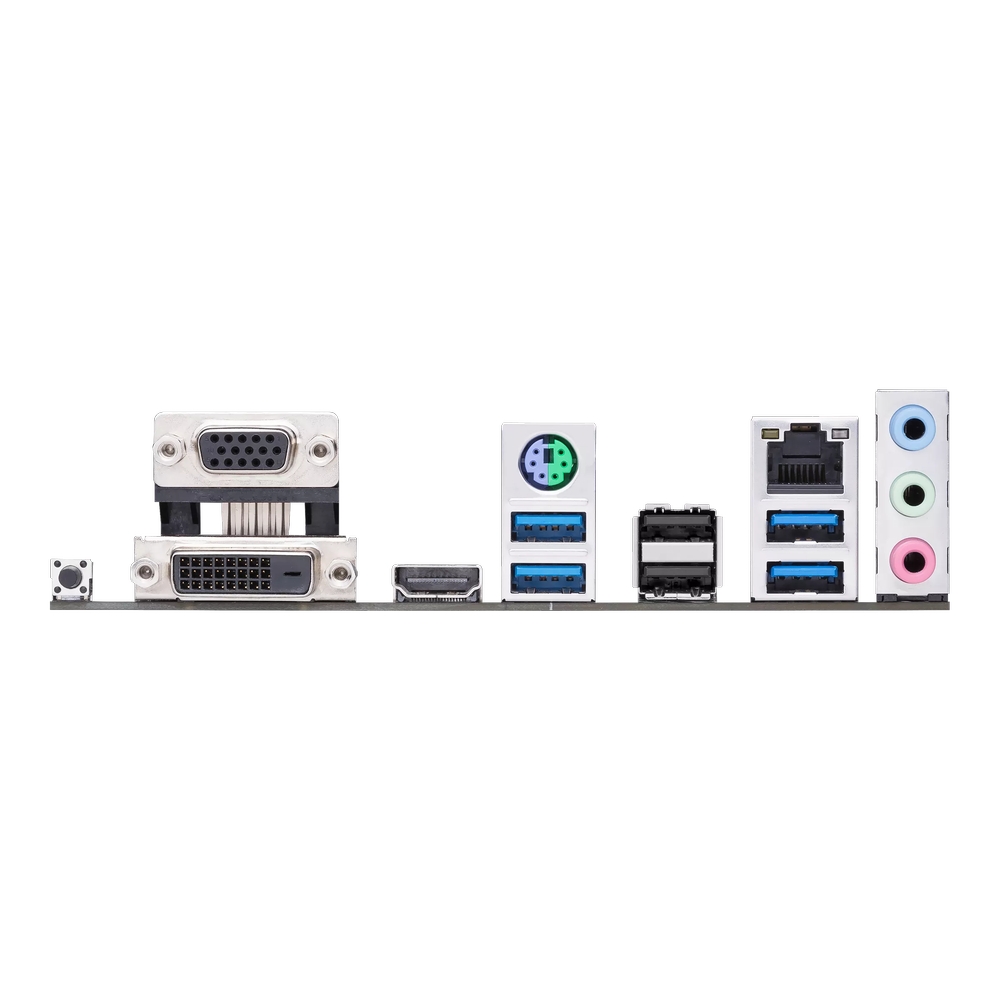

| I/O konektori na zadnjoj strani | 1 x BIOS FlashBack™ Button(s),4 x USB 3.2 Gen 1 (blue) Type-A,1 x PS/2 keyboard/mouse combo port(s),1 x DVI-D,3 x Audio jack(s),1 x D-Sub,1 x HDMI,1 x LAN (RJ45) port(s),2 x USB 2.0 |
| Unutrašnji I/O konektori | |
| Unutrašnji I/O konektori | 1 x SPI TPM header,1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin),1 x Chassis Fan connector(s) (1 x 4-pin),1 x 8-pin ATX 12V Power connector(s),1 x CPU Fan connector(s) (1 x 4-pin),1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode),4 x SATA 6Gb/s connector(s),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x System panel(s),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x COM port(s) connector(s),1 x Front panel audio connector(s) (AAFP),1 x Clear CMOS jumper(s),1 x COM port header,1 x Speaker connector |
| Dodatna oprema | |
| Dodatna oprema | 1 x M.2 Anchor,User´s manual,I/O Shield,2 x SATA 6Gb/s cable(s),1 x Supporting DVD |
| BIOS | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Operativni sistem | |
| Operativni sistem | Windows® 7 64-bit *,Windows® 10 64-bit |
| Format | |
| Format | 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm ),mATX Form Factor |
| Napomena | |
| Napomena | *To support Windows 7 64-bit, please install an AMD Ryzen™ 2nd Generation or Ryzen™ 1st Generation Processor. |
| Proizvodjac | |
|---|---|
| Format ploce | |
| Procesorsko leziste | |
| Cipset | |
| Tip memorije | |
| Broj RAM slotova | |
| Maksimalna ukupna memorija | |
| Broj M.2 slotova | |
| Broj SATA priključaka |
