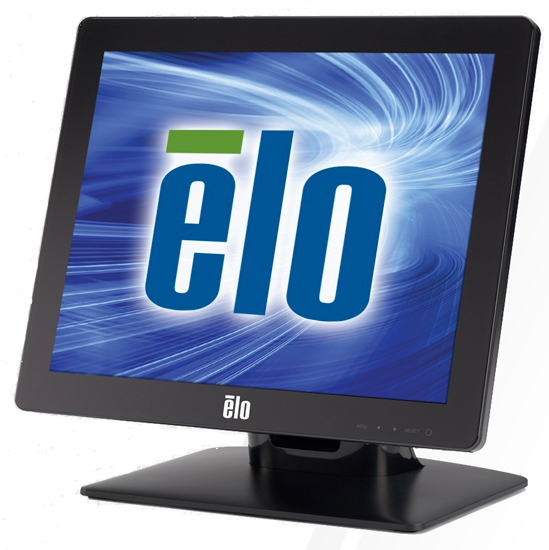

The 1517L touchmonitor is built to withstand the rigors of continuous public use with a rugged „built for touch“ design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems are found.
The 1517L is offered with AccuTouch five-wire resistive, IntelliTouch or iTouch zero-bezel surface acoustic wave technology. AccuTouch is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. IntelliTouch and iTouch pure glass surface acoustic wave technology delivers the ultimate in optical quality for dry retail and hospitality applications.
The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation, is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
The 1517L touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.
| Model | 1517L |
|---|---|
| Color | Black or White |
| LCD Technology | Active matrix TFT LCD with LED backlighting |
| Diagonal size | 15.0″ |
| Monitor thickness | 1.7 inches/43 mm panel depth |
| Aspect Ratio | 4:3 |
| Active Display Area | 8.98 x 11.97 inches/228 x 304 mm |
| Native Resolution | 1024 x 768 |
| Preset Video Timings |
640×480 @ 60Hz, 75Hz |
| Colors | 16.2 million |
| Brightness (Typical) |
LCD panel: 250 nits |
| Response Time (Tr+tf) (Typical) |
16 msec |
| Viewing Angle (Typical) |
Horizontal: +/-80° or 160° total Vertical: +/-70° or 140 ° total |
| Contrast Ratio (Typical) | 700:1 |
| On-Screen Display (OSD) |
Accessible through switches along the bottom: |
| Video | • Analog VGA on Female DE-15 connector • Input Video Horizontal Sync frequency range: 31.5- 60KHz • Input Video Vertical Sync (frame rate) frequency range: 56-75Hz |
| Touch Interface | Serial (RS232) and USB |
| Monitor input power connector – AC | IEC 60320 C6 |
|---|---|
| Monitor input power signal specifications | 100-240VAC, 50/60Hz |
| Monitor input power connector – DC | Coaxial power jack (2.1mm pin outer diameter, 6.4mm barrel inner diameter) |
| Monitor input power signal specifications | 12VDC ±5% |
| Note | Optional AC-DC power adapter sold for this monitor |
| Adapter input connector | IEC 60320 C14 |
| Adapter input voltage range | 100-240VAC, 50/60Hz |
| Power Consumption (Typical) | • ON (monitor only): 12W; • SLEEP (monitor only) : 1.7W; • OFF (monitor only) : 1.3W |
| Shipping Dimensions | 19.2 x 9.1 x 19.1 inches/487 x 231 x 485 mm |
|---|---|
| Dimensions (with stand) |
14.1 x 7.8 x 12.5 inches /358 x 197 x 319 mm |
| Weight | • Unpackaged: 4.3 kg/9.5 lb • Packaged: 7.3 kg/16.0 lb |
|---|
| Temperature | Operating: 32°F to 104°F (0°C to 40°C) Storage: -4°F to 140°F (20°C to 60°C) |
|---|---|
| Humidity (noncondensing) |
Operating: 20%-80% Storage: 10%-90% |
| MTBF | 50,000 hours demonstrated |
|---|---|
| Mounting Options | 75 mm VESA mount Capped through-mount holes |
| Sealing | Touchscreen sealed to bezel Touchscreen sealed to LCD |
| Other Features | Security lock receptacle |
Windows is a trademark of the Microsoft Corporation.
MTBF (Mean Time Between Failures)
An MTBF measurement is based on a statistical sample and is not intended to predict any one specific unit’s reliability; thus MTBF is not, and should not be construed as, a warranty measurement.
