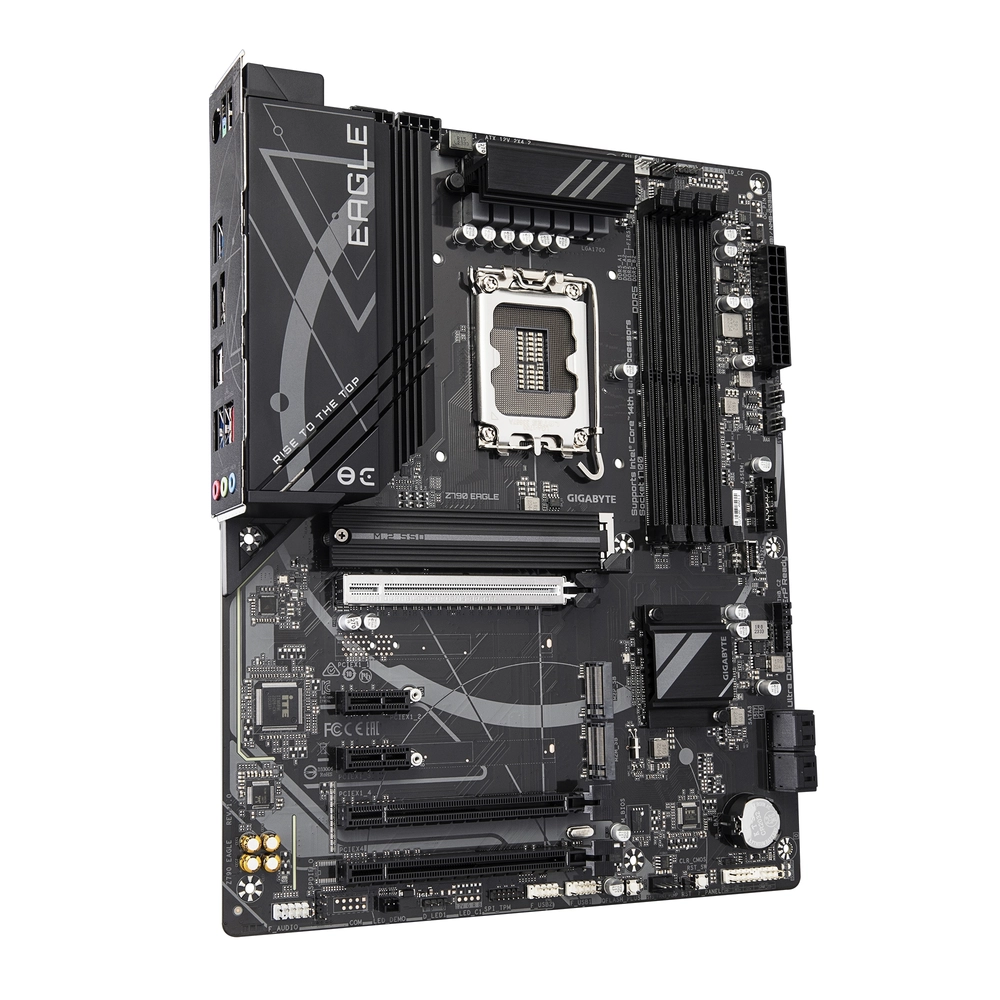

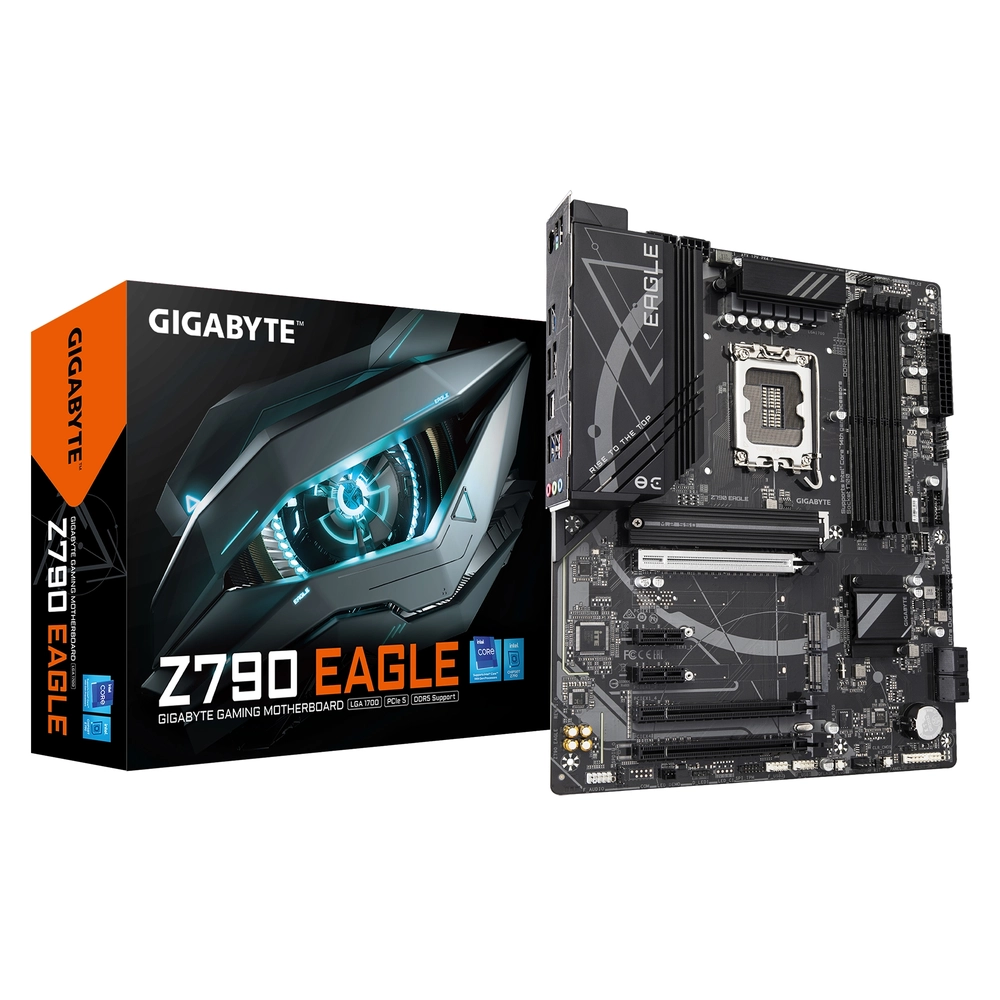

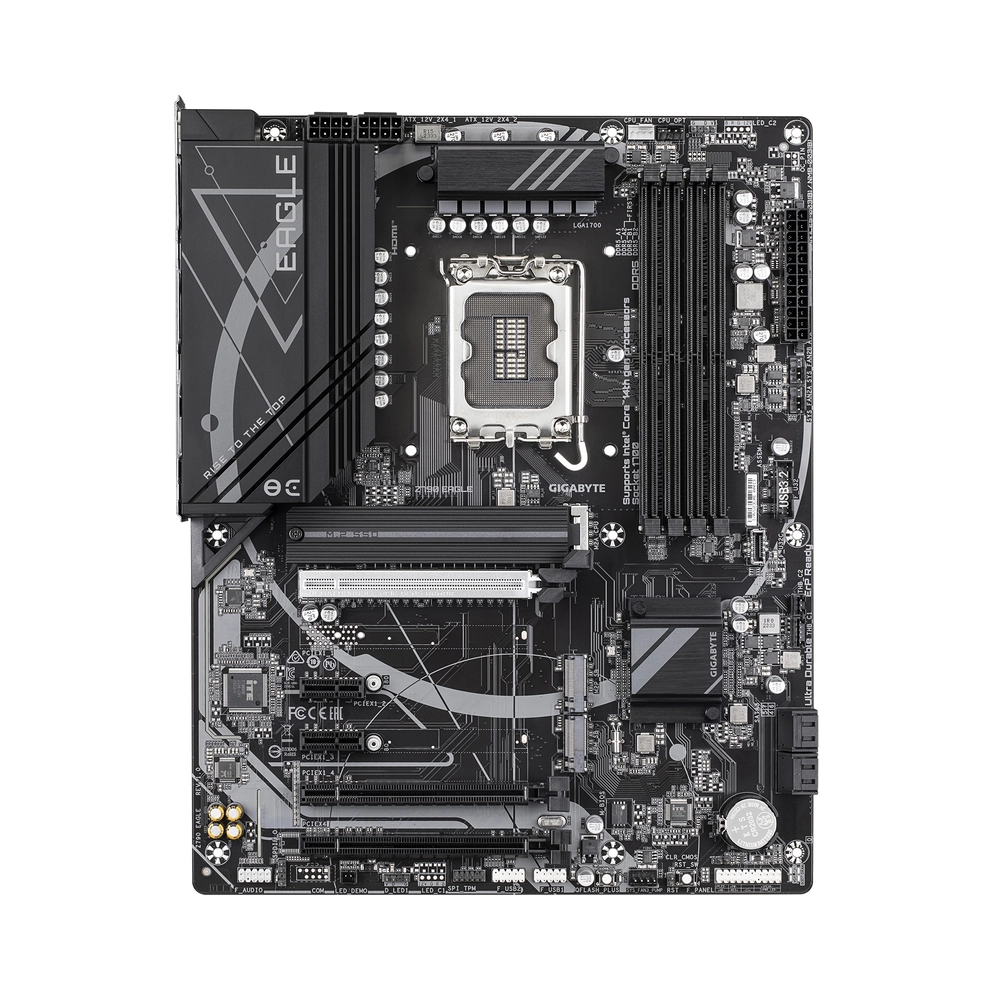

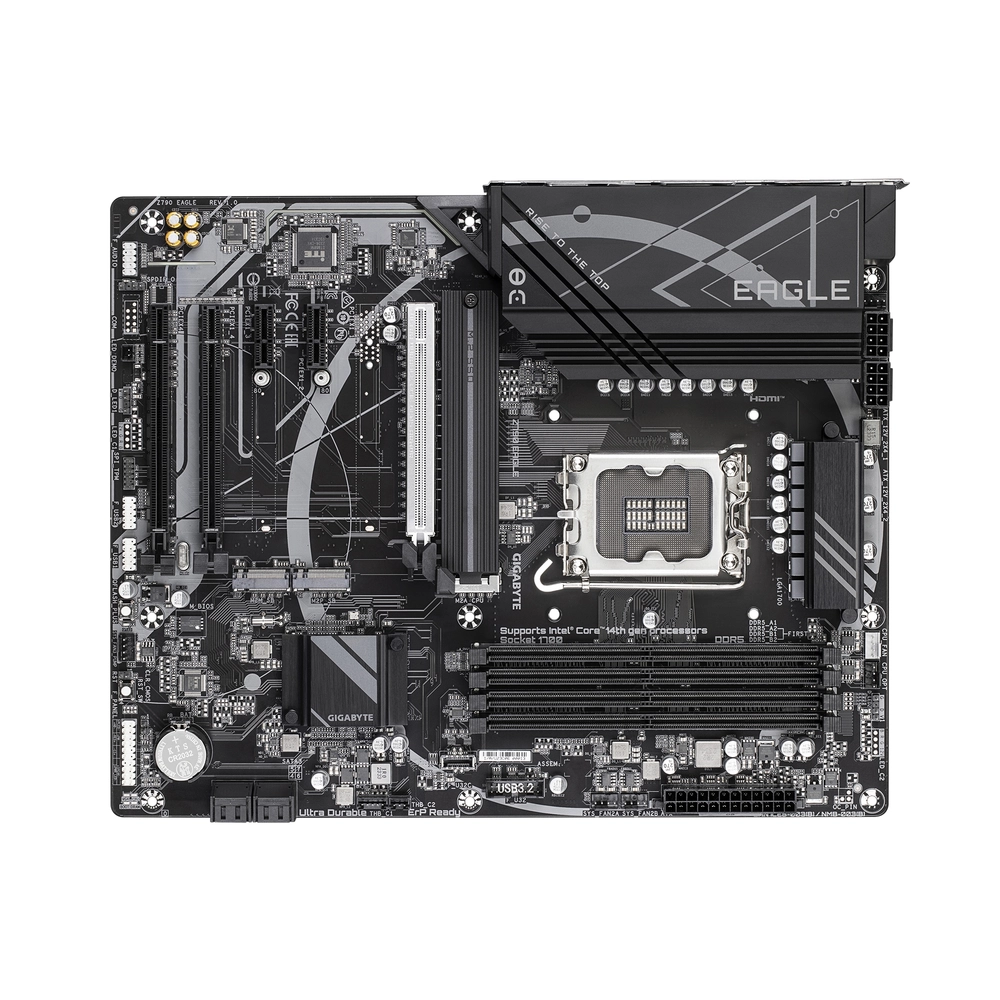

GIGABYTE Z790 EAGLE rev. 1.0 – Maticna Ploca za INTEL LgA-1700
24.400 RSD
| Soket / CPU | LGA1700 – podrška za Intel® Core™ 14/13/12. gen + Pentium® Gold i Celeron® |
| Čipset | Intel® Z790 Express |
| Memorija | 4× DDR5 (Dual Channel), do 256 GB, XMP podrška, do 7600 MT/s (OC) |
| Grafički izlazi | HDMI 2.1 (4K@60), DisplayPort (4K@60) – zavisi od procesora |
| Mreža | 2.5GbE LAN (Realtek®) |
| Slotovi | 1× PCIe 5.0 x16 (CPU) + 1× PCIe 4.0 x16 (x4) + 1× PCIe 3.0 x16 (x1) + 2× PCIe 3.0 x1 |
| Storage | 3× M.2 (PCIe 4.0; jedan podržava i SATA) + 4× SATA 6Gb/s, RAID 0/1/5/10 |
| USB | USB-C 3.2 Gen2 (pozadi) + USB-A 3.2 Gen2 + više USB 3.2 Gen1 i USB 2.0 portova (pozadi i interno) |
| Audio | Realtek® HD Audio, 7.1-kanalni, S/PDIF Out |
| Format | ATX (30.5 × 24.4 cm) |
| OS podrška | Windows 11 64-bit / Windows 10 64-bit |
GIGABYTE Z790 EAGLE
| CPU | LGA1700 soket: podrška za Intel® Core™ 14., 13. i 12. generacije, Pentium® Gold i Celeron® procesore (L3 keš varira u zavisnosti od CPU-a) |
| Čipset | Intel® Z790 Express |
| Memorija | 4× DDR5 DIMM, do 256 GB (maks. 64 GB po modulu), dual-channel i9/i7 (14. i 13. gen): DDR5 do 7600 (OC) / 7400 (OC) / 7200 (OC) / 7000 (OC) / 6800 (OC) / 6600 (OC) / 6400 (OC) / 6200 (OC) / 6000 (OC) / 5800 (OC) / 5600 / 5400 / 5200 / 4800 / 4400 MT/s i5/i3 (13. gen) + 12. gen + Pentium/Celeron: DDR5 4800/4400 MT/s Podrška: XMP, ECC Un-buffered (radi u non-ECC režimu), non-ECC Un-buffered |
| Integrisana grafika | Intel® HD Graphics (zavisi od CPU-a) 1× HDMI (do 4096×2160 @ 60 Hz), HDMI 2.1, HDCP 2.3 1× DisplayPort (do 4096×2304 @ 60 Hz), DP 1.2, HDCP 2.3 |
| Audio | Realtek® audio kodek, High Definition Audio, 2/4/5.1/7.1-kanalni Podrška za S/PDIF Out |
| LAN | Realtek® 2.5GbE (2.5 Gbps / 1 Gbps / 100 Mbps) |
| PCIe slotovi | CPU: 1× PCIe x16 (PCIe 5.0, radi na x16) – za grafiku ili NVMe SSD Čipset: 1× PCIe x16 (PCIe 4.0, radi na x4), 1× PCIe x16 (PCIe 3.0, radi na x1), 2× PCIe x1 (PCIe 3.0) |
| Skladištenje | M.2 (CPU): 1× M.2 (22110/2280), PCIe 4.0 x4/x2 M.2 (čipset): 1× M.2 (2280) PCIe 4.0 x4/x2 + 1× M.2 (2280) SATA ili PCIe 4.0 x4/x2 4× SATA 6Gb/s RAID: 0/1/5/10 za NVMe i SATA |
| USB | Zadnji panel: 1× USB-C (USB 3.2 Gen 2), 1× USB 3.2 Gen 2 Type-A (crveni), 4× USB 3.2 Gen 1, 2× USB 2.0 Interno: 1× USB-C header (USB 3.2 Gen 1), 1× USB 3.2 Gen 1 header (još 2 porta), USB 2.0 headeri (još 4 porta) |
| Interni konektori | 24-pin ATX, 2× 8-pin ATX 12V Fan headeri: 1× CPU, 1× CPU/pump, 3× system, 1× system/pump 2× ARGB (adresabilni) headera 3× M.2, 4× SATA Front panel, front audio, S/PDIF Out, USB-C header, USB 3.2 header, 2× USB 2.0 headera 2× Thunderbolt add-in konektora TPM header (GC-TPM2.0 SPI serija) Reset dugme, Q-Flash Plus dugme, reset jumper, Clear CMOS jumper |

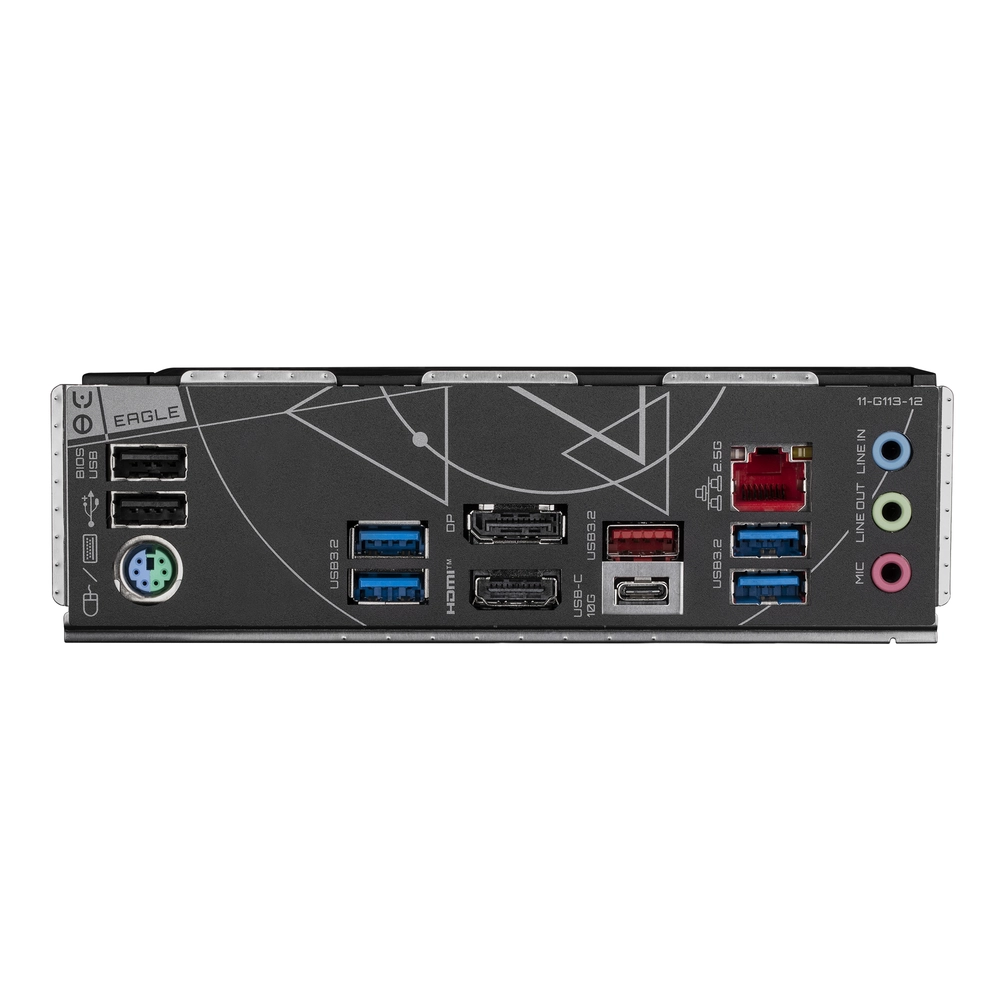

| Zadnji panel | PS/2, USB-C (USB 3.2 Gen 2), USB 3.2 Gen 2 Type-A (crveni), 4× USB 3.2 Gen 1, 2× USB 2.0 HDMI, DisplayPort, RJ-45, 3× audio jack |
| BIOS | 1× 256 Mbit flash, AMI UEFI BIOS |
| Specijalne funkcije | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Softver u paketu | Norton® Internet Security (OEM), softver za upravljanje LAN protokom |
| Operativni sistemi | Windows 11 64-bit, Windows 10 64-bit |
| Format (Form Factor) | ATX; 30.5 cm × 24.4 cm |
| Proizvodjac | |
|---|---|
| Format ploce | |
| Procesorsko leziste | |
| Cipset | |
| Tip memorije | |
| Broj RAM slotova | |
| Maksimalna ukupna memorija | |
| Broj M.2 slotova | |
| Broj SATA priključaka |
