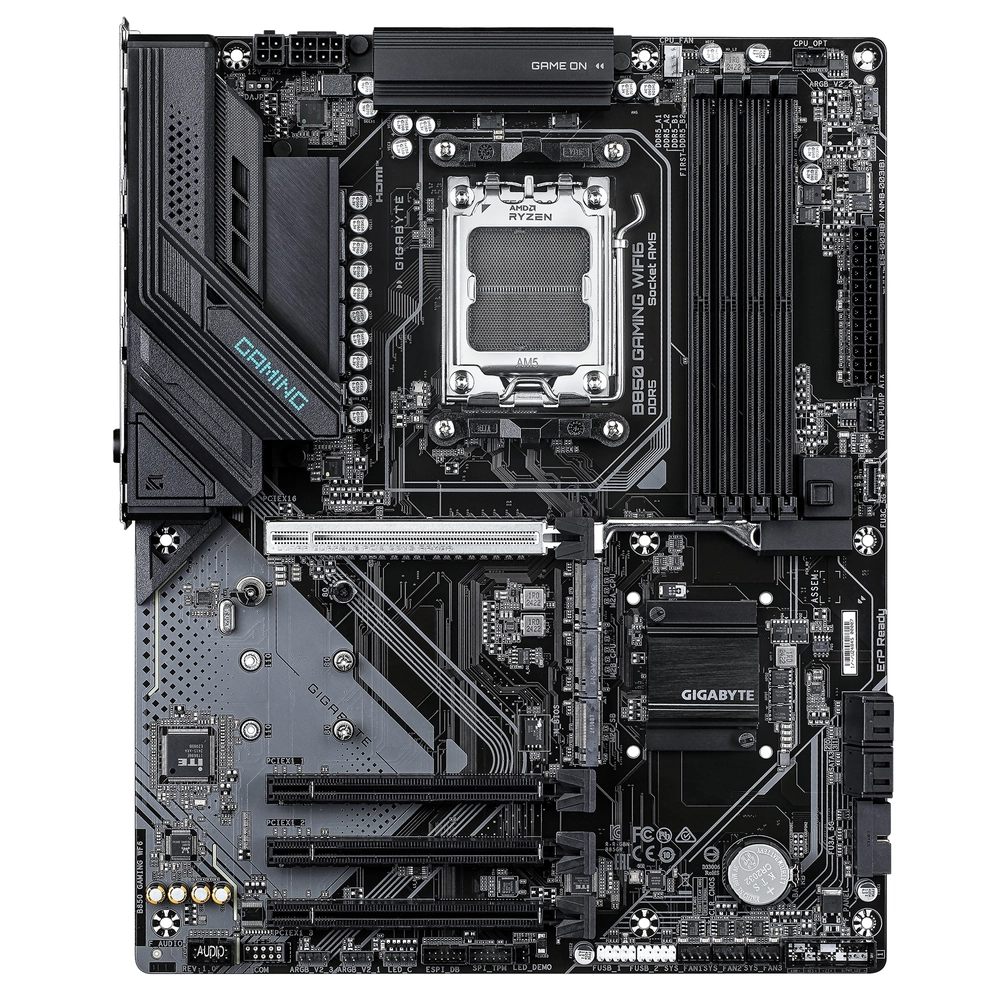

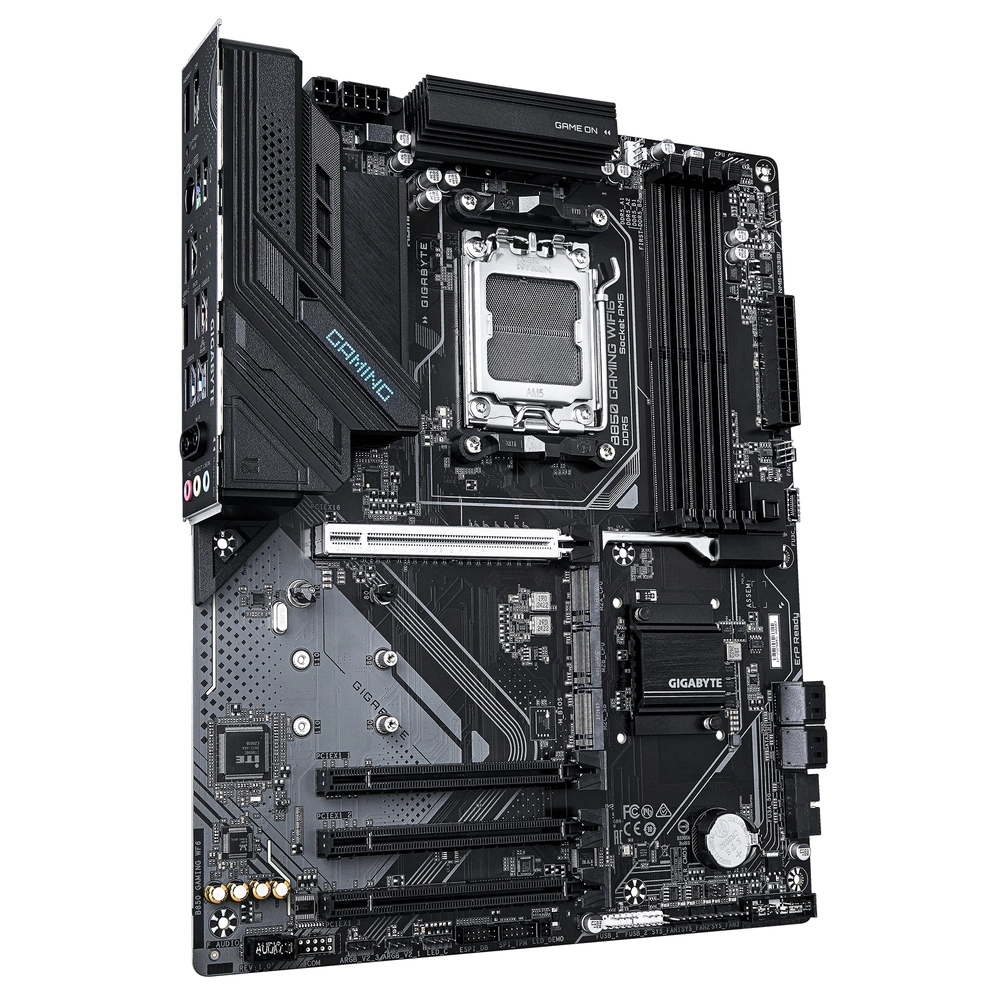

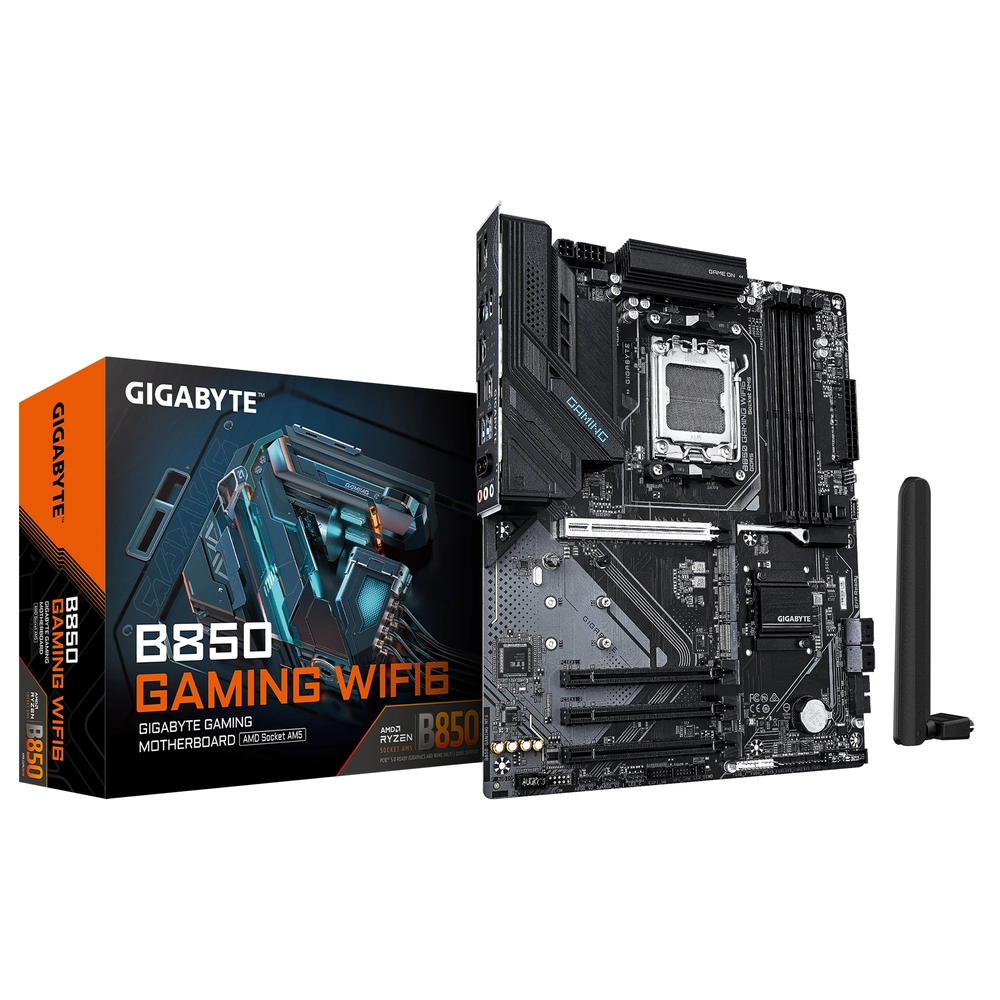

GIGABYTE B850 GAMING WIFI6 rev. 1.0 – Maticna ploca za AMD AM5
22.900 RSD
| Socket | AMD AM5 |
| Chipset | AMD B850 |
| Podržani procesori | AMD Ryzen™ 7000 / 8000 / 9000 serija |
| Memorija | 4× DDR5 DIMM, do 256GB, Dual Channel |
| Maks. brzina RAM-a | DDR5 do 8200 MT/s (OC), AMD EXPO™ / XMP |
| PCI Express | PCIe 5.0 x16 (zavisno od CPU) |
| Skladištenje | 3× M.2 (PCIe 5.0 / 4.0) + 4× SATA 6Gb/s |
| Mreža | 1Gb LAN + Wi-Fi 6 + Bluetooth 5.3 |
| Video izlazi | DisplayPort 1.4 + HDMI 2.1 |
| Format | ATX |
GIGABYTE B850 GAMING WIFI6
| Socket / CPU | AMD AM5 – podrška za AMD Ryzen™ 9000 / 8000 / 7000 seriju |
| Chipset | AMD B850 |
| Memorija (RAM) | 4× DDR5 DIMM, do 256GB, Dual Channel |
| Podrška za brzine RAM-a | DDR5 do 8200 MT/s (OC), AMD EXPO™ / XMP |
| Tip memorije | Non-ECC, unbuffered |
| Grafika (iz CPU) | Integrisana AMD Radeon™ Graphics (zavisi od procesora) |
| Video izlazi | 1× DisplayPort 1.4 (4K@144Hz, HDR) + 1× HDMI 2.1 (4K@60Hz, HDR, HDCP 2.3) |
| Audio | Realtek® HD Audio, 2/4/5.1/7.1-kanalni |
| Mreža (LAN) | Realtek® 1GbE |
| Wi-Fi / Bluetooth | Realtek® Wi-Fi 6 (802.11ax, 2.4/5GHz, 80MHz) + Bluetooth 5.3 |
| PCIe slotovi | 1× PCIe x16 (Gen5/Gen4 zavisno od CPU) + 3× PCIe 3.0 x1 (x16 fizički) |
| M.2 / Skladištenje | 3× M.2 (1× PCIe 5.0, 1× PCIe 4.0, 1× PCIe 4.0 x2) + 4× SATA 6Gb/s |
| RAID podrška | NVMe RAID 0/1/5/10 (RAID 5 samo uz Ryzen 9000) • SATA RAID 0/1/10 |

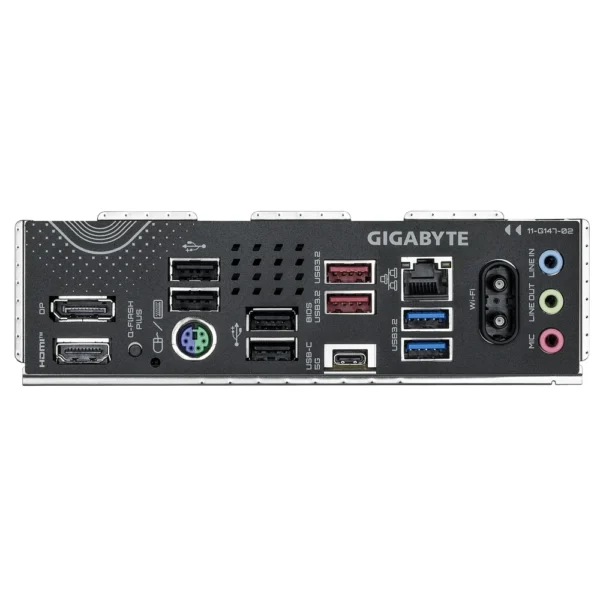

| USB (zadnji panel) | USB-C 3.2 Gen1 + 2× USB-A 3.2 Gen2 + 2× USB-A 3.2 Gen1 + 4× USB 2.0 |
| Zadnji panel (ostalo) | PS/2, RJ-45, 2× konektor za antene, 3× audio jack, Q-Flash Plus dugme |
| Napajanje | 24-pin ATX + 8-pin + 4-pin CPU |
| Hlađenje | CPU fan + CPU pump + 4× system fan/pump header |
| RGB | 3× Addressable RGB Gen2 + 1× RGB |
| BIOS | AMI UEFI BIOS, 256 Mbit, Q-Flash / Q-Flash Plus |
| Operativni sistem | Windows 11 / Windows 10 (64-bit) |
| Format | ATX (30.5 × 24.4 cm) |
| Proizvodjac | |
|---|---|
| Format ploce | |
| Procesorsko leziste | |
| Cipset | |
| Tip memorije | |
| Broj RAM slotova | |
| Maksimalna ukupna memorija | |
| Broj M.2 slotova | |
| Broj SATA priključaka | |
| Ugradjen Wi-Fi | |
| Bluetooth |
